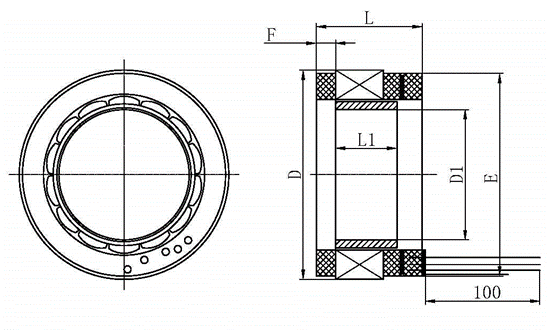

定子外径D

32.5mm

h9

定子长度L

16.4mm

±1

转子内径D1

20.2mm

H8

转子长度L1

9.5mm

±0.25

灌胶面外圆E

31.5mm

±0.2

灌胶面高度F

3mm

±0.3

介电强度

( Dielectric   Strength )

600VAC/1S

绝缘电阻

 ( Insulation Resistance )

100MΩ, 500VDC

环境温度

( Ambient   Temperature )

-20°C   ~     +50°C

绝缘等级

(Insulation   Class)

Class B

黄色  ( Yellow )

AWG26

U相 (   Phase U )

红色  ( Red )

V相 (   Phase V )

黑色  ( Black)

W相 (   Phase W )

极数  ( Number of poles )

14

相数  ( Number of phases )

3

额定电压 (   Rated  voltage )

VDC

48

18

额定转矩 (   Rated torque)

mN.m

50

50

额定电流(Rated current)

A

0.8

2.2

额定速度 (   Rated speed )

RPM

5000

5000

额定功率 (   Rated power )

W

26

26

最大转速(Maximum speed)

RPM

7000

7000

峰值转矩 (   Peak torque )

mN.m

100

100

峰值电流 (   Peak current )

A

1.6

4.4

线电阻 (   Line to line resistance )

ohms@20℃

8.6

1.3

线电感 (   Line to line inductance )

mH

2.5

0.35

转矩常数 (   Torque constant )

mNm/A

64.8

24

反电势 (   Back EMF )

Vrms/KRPM

4.8

1.8

机身长度 (   Motor length )

mm

16.4

16.4

重量 (   Weight )

g

40

40

电气时间常数(Electrical   time constant)

ms

0.29

0.27
